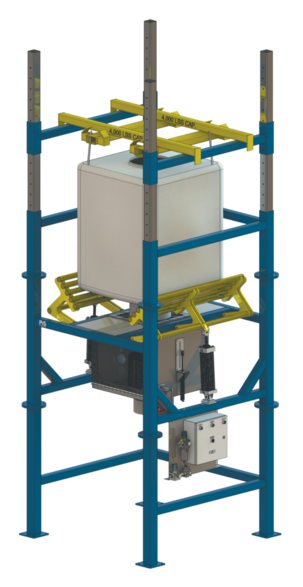

Unload/ Fork truck bulk bag unloader
Want to learn more?
contact us at 716.646.0181
16-6001 Series
STANDARD SPECIFICATIONS
• Heavy Duty Tubular Construction
• Textured Powder Coat Finish
• Electric Hoist & Trolley
• Compressed Air Preparation Kit
• Precision Regulator
• Inflation Collar & Manual Switch
• Flexible Bag Snout
UTILITY REQUIREMENTS:
Electrical:
• 15 AMP at 460 VAC, 3 Phase, 60 Hertz
Compressed Air:
• 4-6 CFM at 90 PSI (Intermittent Duty)
o Clean & Dry, Free of Oil & Dirt
*Note: All utility connections at control panel, field located
APPLICATION
The PVS Process Equipment 16-6001 Series Fork Truck Bulk Bag Unloader is designed with flexibility to accommodate a wide range of bulk bags containing a variety of material types. Through intelligent packaging, bulk bags can be unloaded within a small foot print allowing for utilization in tight spaces or low head room applications. This unit reduces suspended load hazards and provides active pinch-point protection, maintaining the focus on operator safety first and foremost. Bags can be emptied into a range of receiving devices for integration to positive pressure, negative pressure of gravity conveying applications.
DESIGN
The 16-6001 Series Fork Truck Bulk Bag Unloader features modular upper and lower frameworks combined to safely support the bulk bag and its contents. A bulk bag can be loaded by fork truck for efficiency. Each unit is designed so the operator never stands directly under the bulk bag during any phase of positioning and discharging the bag’s contents. A safety cell containing the discharge snout and connection provide both operator protection during untying while preventing spillage. An inflation collar seals the bag snout within the cell, further containing dust generated from the unloading operation. Simple controls allow for easy change out operation and adjustment to system settings.
OPTIONS
• Stainless Steel Construction
• Forklift Style Loading Frame
• Vibratory Table
• Bag Massager Arms
• Automatic Flow Cut Off
• Sealed Untie Box
• Snout Extender
• Dump Station Integration
• Dust Collection Integration
