APPLICATION
A slide gate is used to automate the control of air-flow in dust control systems. As an alternative to the traditional blast gate, that loses pressure, a PVS automatic slide gate is applied to direct air-flow from one intermittant use pick-up point to another.
In the closed position, an automatic slide gate shuts off air-flow to lines that are not in use. This prevents the loss of pressure in the system, keeping vacuum suction at its strongest where it’s needed. With air-flow provided only when required, reduces power is consumption, maximizing your systems efficiency.
The PVS automatic slide gate is designed to extract the maximum amount of dust or debris from a point in your system. They can be used with a variety of dry materials and applications, operating either manually or pneumatically. In dry applications, they are appropriate for low pressure systems that can accept a loss of pressure.
OPTIONS
• Stainless Steel Construction
• Food Grade Material
• Limit Switches
• Sanitary Inlet/Outlet
• Limit Switch
• Control Station
• Flanged
• Clamped
• Easy Duct
• Spiral Duct
• Manual Controls
Want to learn more?
contact us at 716.646.0181
STANDARD SPECIFICATIONS
• Sizes range from 2" - 16”
• Tube stub ends
° Flanged, Duct, Clamped and Sanitary
• Pneumatically activated with magnet
• Stainless Steel Slide Plate
• Replaceable ware strips
• Powder coated finish
Pressure rated to 8" HG.

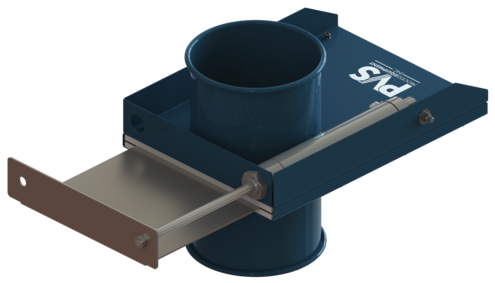

Accessories/ Automatic Slide Gate
904-80-1000 Series
