APPLICATION

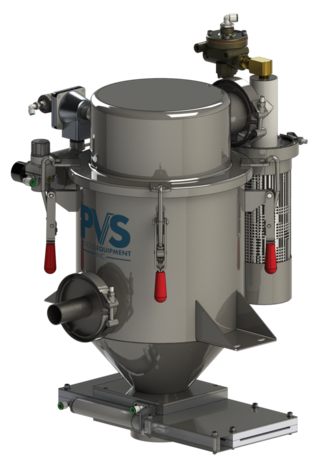

The PPC-1201 12" Packaged Pneumatic Conveyor is designed to handle fine bulk materials under vacuum over short distances into a filter receiver with integrated vacuum power unit. The 101 Series conveyor are available in two versions for either general conveying or keep full/refill applications, with a selection of discharge valve types (gravity, slide plate and butterfly), depending on the application and material being handled.
Operation
In General Conveying, The vacuum power unit draws material into the receiver until a timed cycle expires, at which point the material is discharged into the process below. For Keep Full Systems, The vacuum power unit draws material into the receiver until it is full and discharges the complete contents upon signal from the equipment to be filled. This cycle is then automatically repeated.
DESIGN
The configurable design of the PPC-1201 12" Packaged Conveyor allows for a high degree of customization. Available in either mild steel or stainless steel construction and can be painted or finished to the application requirements.
Standard Specifications
• Carbon Steel Construction w/ Powder Coated Finish
• Integral Vacuum Power Unit
• Removable/ Replaceable Radial Inle
• Lift-Off Cover for Tool-less Access to Filter Elements
• PTFE Coated Polyester Filters (Washable)
• Compressed Air Regulator and Filter
• Microprocessor Controlled Operation
• Continuous or Off Line Cleaning Modes
• Pulse Filter Cleaning System
Convey/ 12" Packaged Pneumatic Conveyor
Want to learn more?
contact us at 716.646.0181
Options
• Pickup Vacuum Wand or Fill Funnel
• Flexible Hose Lengths to 20’
• Inlets Range From 1" to 4" Diameter
• Receiver Volume from 1/4 to 4 Cubic Feet
• Cartridge or Bag Filters
• Venturi, Electric or Regenerative Style Blower
• Hinged or Lift Off Filter Access Cover
• Free Standing or Hanging Support Frames
• Remote Start/ Stop Station
• Universal Mounting Flange
• Multi-Convey System Controller
• High Level Sensor Port
UTILITY REQUIREMENTS
Based upon selection of vacuum power unit electrical:
• Venturi Operation, 10 AMP at 120 Volt, 1 Phase, 60 Hertz
• Electric Blowers, 30 AMP at 120 Volt, 1 Phase, 60 Hertz
Compressed Air:
• Single Jet Operation, 30 CFM @ 60-80 PSI
• Electric & Regen Blower, 4-6 CFM at 90 PSI (Intermittent Duty)
o Clean & Dry, Free of Oil & Dirt
PPC-1201 Series
