103-0301 Series

Want to learn more?

contact us at 716.646.0181

STANDARD SPECIFICATIONS

• Heavy Duty Structural Tube Base
• 12 Ga. Carbon Steel Housing
• Electric Lift for Cleaning & Inspection
• Tool-Less Access to Clean Side Filters
• Pulse Filter Cleaning System
• High Level Sensor
• Dual Inlets Up To 6" Diameter
• Top Removal Bag or Cartridge Filters
• Spun-Bond Polyester Media with Teflon Coating
• 20 Gallon Drum with gasket


UTILITY REQUIREMENTS:

Electrical:
  • 1.5 AMP at 120 Volt, 1 Phase, 60 Hertz

Compressed Air
  • 2 CFM at 90 PSI (Intermittent Duty)
     o  Clean & Dry, Free of Oil & Dirt
  • Utility connections at control panel, field located


APPLICATION

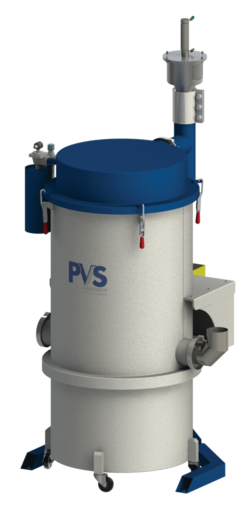

The PVS Process Equipment 103-0301 Series Floor Standing Filter Receiver is typically utilized when the primary separator does not have filtration, such as a cyclone or settling chamber. Automatic pulse filter cleaning included for operation in conditions where manual cleaning of static filter elements would not be practical.  A configurable tube sheet allows for a variety of filter cartridges or bag combinations which can be specified to meet the needs of the application.


DESIGN

The Series 103-0301 has a quick access cover for easy filter inspection.  The ergonomic electric lift allows for easy access to the drum below the filters without the use of straps, bands or clamps. A variety of inlet/outlet combinations are available up to 6" diameter.  A vacuum equalization kit allows for the use of standard size bags for dust collection. Height adjustable to accommodate up to a 55 gallon drum. Dual inlet ports allow for installation flexibility.


OPTIONS

• Stainless Steel Construction
• 55 Gallon Drum Height
• Custom Elevation to Fit Equipment
• Vacuum Breaker Valve
• Differential Pressure Switch



Convey/ Floor Standing Filter Receiver
